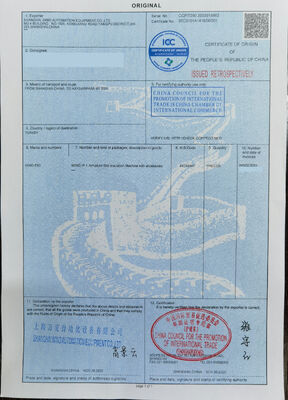

Certificat

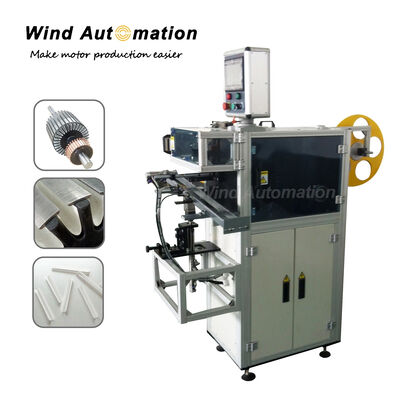

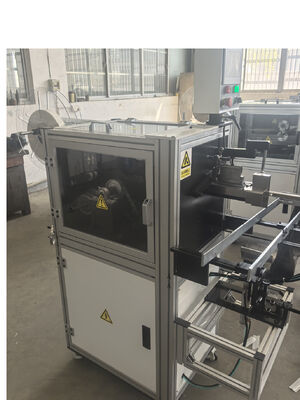

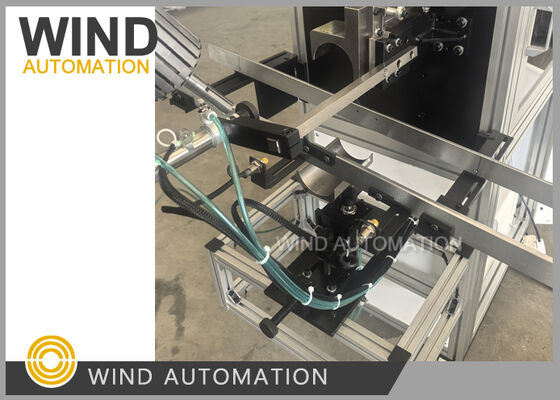

Skew Armature Paper Inserter Slot Liner Insulate Stack Core And Winding
|
|
Détails sur le produit:
Conditions de paiement et expédition:
|
Description de produit détaillée
| Condition: | Nouveau | Vitesse d'insertion: | 0.5 à 0,8 seconde par fente |
|---|---|---|---|
| Matériel: | DMD, DM, film de polyester (épaisseur 0,125 mm) | Épaisseur de coupe: | Inférieur à 0,5 m |
| Couleur machine: | Blanc ou par client exigence | Après-vente: | Ingénieur disponible pour le support à l'étranger |
DC Motor Armature Paper Inserting Machine Slot Cell Insulation 0.5 To 0.8 Second Per Slot WIND-1P-1
(1)Specification
| Length of insulation paper | 15-60mm adjustable |
| Thickness of insulation paper | 0.1 mm ~ 0.5 mm |
| Insulation paper shape | V or edge-folding V |
| Armature OD | 20-55mm |
| Length of lamination | Max 60mm |
| Shaft length | 32~250mm |
| Shaft OD | 6~20mm |
| Slot number | 8-24 slots |
| Commutator OD | 16~50mm |
| Speed regulation range | 0~60Hz |
| Air pressure | 4~6kg/cm2 |
| Voltage | AC220V±10%, 50/60Hz |
| Machine power | 1.0KW |
| Weight | about 400Kg |
| Dimension | 910 mm x 880 mm x 1300mm |
(2)Feature
PLC control
Adjustable for different rotor lengths
Quick and easy readjustment to other armature types
Precise Insulation paper length control
Suitable for three shifts continuous production
Friendly designed operator's interface
Precise paper formation and placement
(3) Application
This is suitable for home appliance, mixer, meat grinder, air conditioner, refrigerator, vacuum cleaner, washing machine, juicer, mixer, various pump, power tool with straight bar and skew bar
(4) Question & Answer
The skewed stacks will be perfect so machine will form, cut, and insert automatically
Will the same machine also form, cut, and spit out insulation lengths to insert manually on straight stacks?
Yes, the paper insulating machine will form, cut, and insert to both straight stacks and skew slots of metioned types armatures
( with same OD) with one set of tooling,
The formed paper is formed as straight/not skew before it is inserted to slot of armature,
Because the paper is soft, it will go straight or become skew when it come to the slot by insertion automatically,

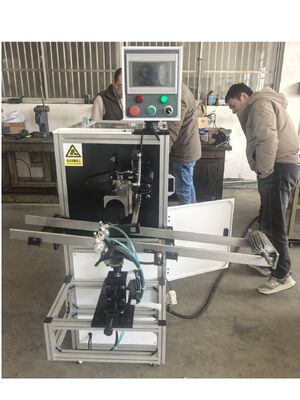

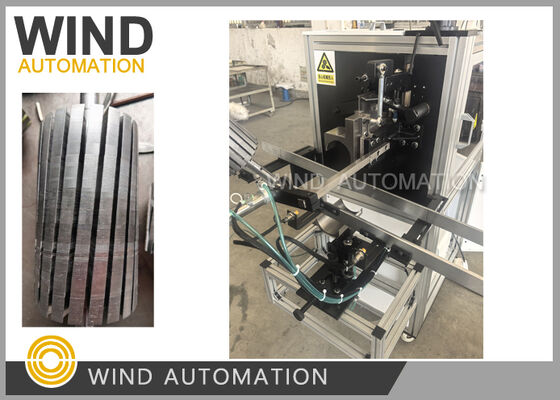

Please refer to attached photo and video for skew slot armature paper insertion,
No matter the armature is straight or skew, the good quality stacking is precondition,
The new paper insulating machine WIND-IP-1 will be tailor made as the stack height of armatures is big,
and the difference of new paper insulating machine and the current machine your plant is using is as below,
1. New paper insulating machine is bigger
2. New paper insulating machine will with the servo motor feeding paper(Length can be set on touch screen)
Please click below photo to view video
